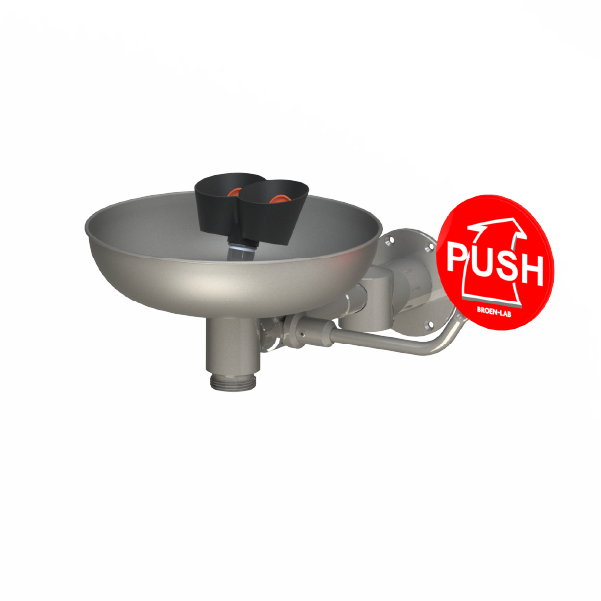

Wall Mounted Eye and face Shower with Bowl- Stainless Steel - 316L - product image

Wall Mounted Eye and face Shower with Bowl, Stainless Steel, 316L

Item no.:
28330011001006

The wall mounted eye and face shower, is designed for simultaneous rinsing of eyes and face, ensuring comprehensive safety in emergency situations. Constructed from acid-resistant stainless steel (316L), this eye and face shower is optimized for use in harsh environments, like offshore, the food and beverage industry etc.

Description
The wall mounted eye and face shower is designed for simultaneous rinsing of eyes and face. The unit’s PUSH activator is placed on the right side. The integrated bowl captures water during use and can be connected to a BROEN-LAB drainpipe for efficient drainage. Constructed from acid-resistant stainless steel (316L), this eye and face shower is optimized for use in harsh environments, like offshore, the food and beverage industry etc. – including laboratories and industrial sites. The eye and face shower is equipped with easy-clean spray heads that effectively reduce limescale build-up, ensuring optimal performance and longer product lifespan. The integrated dust caps tightly seal the spray heads, preventing dust and particles from entering. Once opened during use, the dust caps stay in position, allowing uninterrupted rinsing. The built-in FLOWFIX regulates water flow to 12 l/min for consistent performance. The eye and face shower is constructed in compliance with EN15154 and ANSI Z358.1 standards, ensuring full safety and reliability. The unit can be easily connected to a BROEN-LAB TMV (Thermostatic Mixing Valve) to ensure a consistent water temperature of 22°C. The robust wall-mount flange, featuring six holes, allows for easy installation with a plug-and-play design
Specifications

Material: Stainless Steel 316L, Plastics

Colour: Stainless Steel (Glass-blasted), Red

Flow rate: 12 litres/minute

Min. operating pressure: 1,5 bar

Max. operating pressure: 10 bar

Inlet connection: ISO 228/1 – G1” female

Design and approvals according to:

  • EN15154-2
  • ANSI Z358.1
  • ISO 3864-1

Several global approvals are available.

Downloads
Documents Type File type/size
Customer drawing Product sheet pdf (242.8 kb)

Wall Mounted Eye and face Shower with Bowl, Stainless Steel, 316L
