Health & Safety Tower, Premium

Item no.:
27570011000001

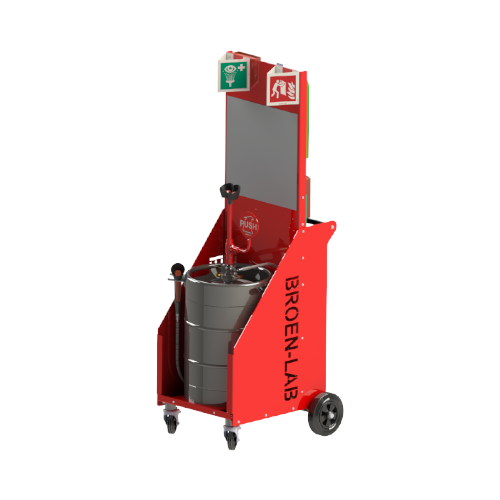

The BROEN-LAB Health and Safety Tower helps to accommodate and simplify the need and requirements for safety/fire equipment and emergency eyewash and shower. It provides an ideal solution for temporary or challenging areas where permanent installations are not possible, but hazards can occur.

Description

The BROEN-LAB Health and Safety Tower helps to accommodate and simplify the need and requirements for safety/fire equipment and emergency eyewash and shower. It provides an ideal solution for temporary or challenging areas where permanent installations are not possible, but hazards can occur. The practical trolley comes optionally equipped with an eye wash/drench hose unit of 37.5 litres, quick safe station, portable first aid kit, fire blanket, fire extinguisher, mirror and trash bin. It is compact and easily manoeuvrable with a max height of 1.7 meters, width of 0.65 meters and length of 0.65 meters. The HS-Tower trolley’s compact design means that it is ideal for narrow places and fits within standard door dimensions. The eye wash/drench hose unit is designed for simultaneous rinsing of eyes, face, and body. The unit is activated easily in a single movement by pushing the activation handle. Once opened during use, the shower remains on until manually turned off, allowing uninterrupted rinsing. The eye wash delivers a water flow of 2.5 litres/minute for up to 15 minutes, while the drench hose delivers 7 litres/minute for up to 5.4 minutes. If used simultaneously, the discharge time is reduced, but the flow rate remains unchanged.

Specifications

Material: Stainless Steel

Colour: Stainless Steel

Capacity: 56 litres (tank), 37.5 litres (filling volume)

Weight: 16 kg (empty), 53.5 kg (full)

Flow rate, eyewash: 2.5 litres / minute for up to 15 minutes

Flow rate, drench hose: 7 litres / minute for up to 5.4 minutes

Min. working temperature: +1°C



Design and approvals according to:

  • EN15154-4
  • ISO 3864-1



Several global approvals are available.

Downloads

Documents Type File type/size
Customer drawing Product sheet pdf (152.1 kb)
