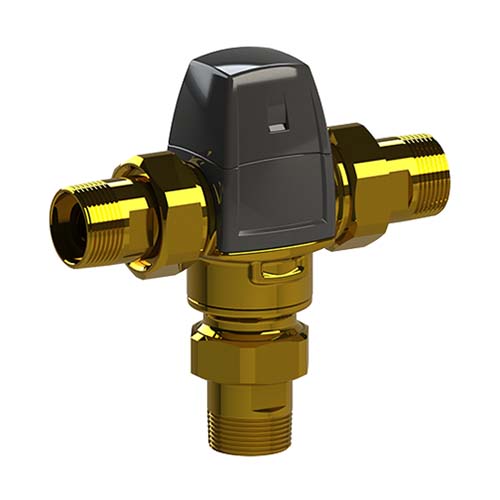

Thermostatic Mixing Valve for Body- and Combination Showers

Item no.:

17513009

The thermostatic mixing valve is specifically designed for body- and combination showers, providing highly accurate control of water temperature. With the thermostatic mixing valve, the water temperature is consistently maintained at 22°C, ensuring that unwanted temperature fluctuations are prevented.

Select optional fittings

Description

The thermostatic mixing valve is specifically designed for body- and combination showers, providing highly accurate control of water temperature. The valve requires a continuous supply of both hot and cold water to function. With the thermostatic mixing valve, the water temperature is consistently maintained at 22°C, ensuring that unwanted temperature fluctuations are prevented.

Specifications

Material: Brass
Color: Brass
operating pressure: 1,5 bar
operating pressure: 10 bar
Water inlet: Male R1″
Water outlet: Male R1″
Norms & certifications:
- EN 15154
- ANSI Z358.1

Downloads

Documents	Type	File type/size
Customer drawing	Product sheet	pdf (178.7 kb)
Spare part drawing	Product sheet	pdf (176.8 kb)
