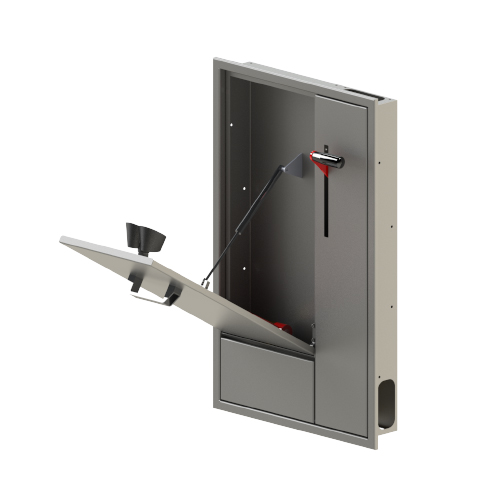

Eye and Body Shower, Wall-Recessed, Stainless Steel

Item no.:
17157009

The recessed shower is designed for simultaneous rinsing of eyes, face and body, and can be built into the wall to save space. The cabinet door activates the eye wash and captures the water during use. The unit has an integrated hand activating 1” valve for body shower with various options for shower outlet.

Eye and Body Shower, Wall-Recessed, Stainless Steel
This item: Eye and Body Shower, Wall-Recessed, Stainless Steel
Body Shower Outlet, Wall-Mounted
Body Shower Outlet, Ceiling-Mounted, Stainless Steel
Body Shower Outlet, Ceiling-Mounted
Body Shower Outlet, Ceiling-Mounted, Anti-Corrosive
Body Shower Outlet, Ceiling-Mounted, Concealed
Body Shower Outlet, Ceiling-Mounted, Anti-Corrosive
Body Shower Outlet, Ceiling-Mounted
Body Shower Outlet, Ceiling-Mounted
Eye and Body Shower, Wall-Recessed, Stainless Steel
This item: Eye and Body Shower, Wall-Recessed, Stainless Steel
Body Shower Outlet, Wall-Mounted
Body Shower Outlet, Ceiling-Mounted, Stainless Steel
Body Shower Outlet, Ceiling-Mounted
Body Shower Outlet, Ceiling-Mounted, Anti-Corrosive
Body Shower Outlet, Ceiling-Mounted, Concealed
Body Shower Outlet, Ceiling-Mounted, Anti-Corrosive
Body Shower Outlet, Ceiling-Mounted
Body Shower Outlet, Ceiling-Mounted
Eye and Body Shower, Wall-Recessed, Stainless Steel
This item: Eye and Body Shower, Wall-Recessed, Stainless Steel
Body Shower Outlet, Wall-Mounted
Body Shower Outlet, Ceiling-Mounted, Stainless Steel
Body Shower Outlet, Ceiling-Mounted
Body Shower Outlet, Ceiling-Mounted, Anti-Corrosive
Body Shower Outlet, Ceiling-Mounted, Concealed
Body Shower Outlet, Ceiling-Mounted, Anti-Corrosive
Body Shower Outlet, Ceiling-Mounted
Body Shower Outlet, Ceiling-Mounted

Description

The recessed shower is designed for simultaneous rinsing of eyes, face and body, and can be built into the wall to save space. The cabinet door activates the eye wash and captures the water during use. The unit has an integrated hand activating 1” valve for body shower with various options for shower outlet. The eye shower is equipped with easy-clean spray heads that effectively reduce limescale build-up, ensuring optimal performance and longer product lifespan. The integrated dust caps tightly seal the spray heads, preventing dust and particles from entering. Once opened during use, the dust caps stay in position, allowing uninterrupted rinsing. The eye shower is constructed in compliance with EN15154 and ANSI Z358.1 standards, ensuring perfect spray pattern, full safety and reliability. The shower can be easily connected to a BROEN-LAB TMV (Thermostatic Mixing Valve) to ensure a consistent water temperature of 22°C. The built-in FLOWFIX regulates water flow to 12 litres/minute for consistent performance. The unit includes signage in accordance with ISO 3864-1 to clearly mark the position of the shower. Constructed from Stainless Steel (316L), this shower is optimized for rough use in industry.

Specifications

Material: Stainless Steel (316L), Brass, Plastics

Colour: Stainless Steel, Red, Black

Flow rate: 12 litres / minute + 60 litres / minute (shower unit)

Min. operating pressure: 2 bar

Max. operating pressure: 10 bar

Inlet connection: G1” female

Outlet connection: OD40mm (1 ½”)



Design and approvals according to:

  • EN15154-2
  • ANSI Z358.1
  • ISO 3864-1

Several global approvals are available.

Downloads

Documents Type File type/size
Customer drawing Product sheet pdf (144.8 kb)
Spare part drawing Product sheet pdf (1.1 mb)
Mounting instructions Product sheet pdf (2 mb)
